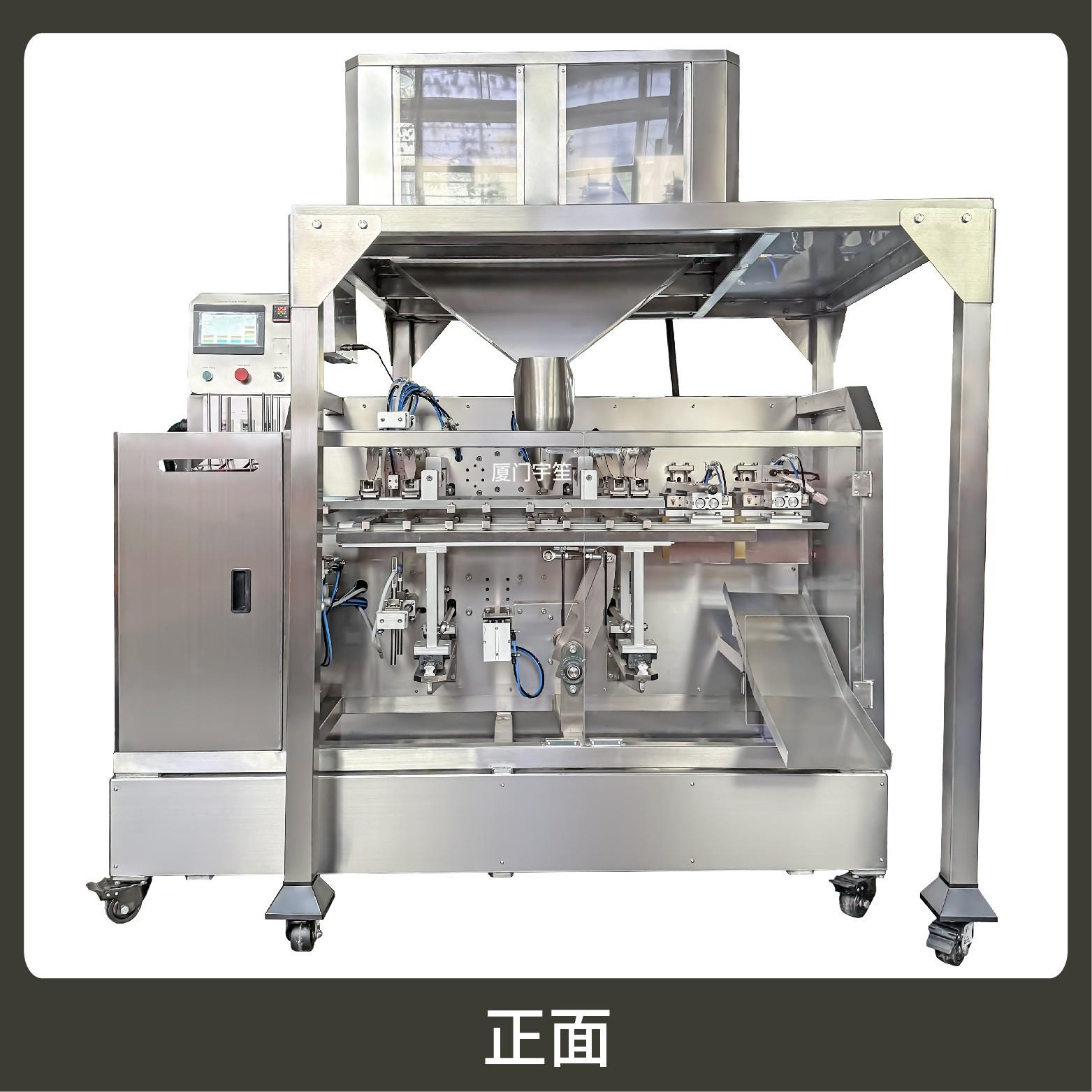

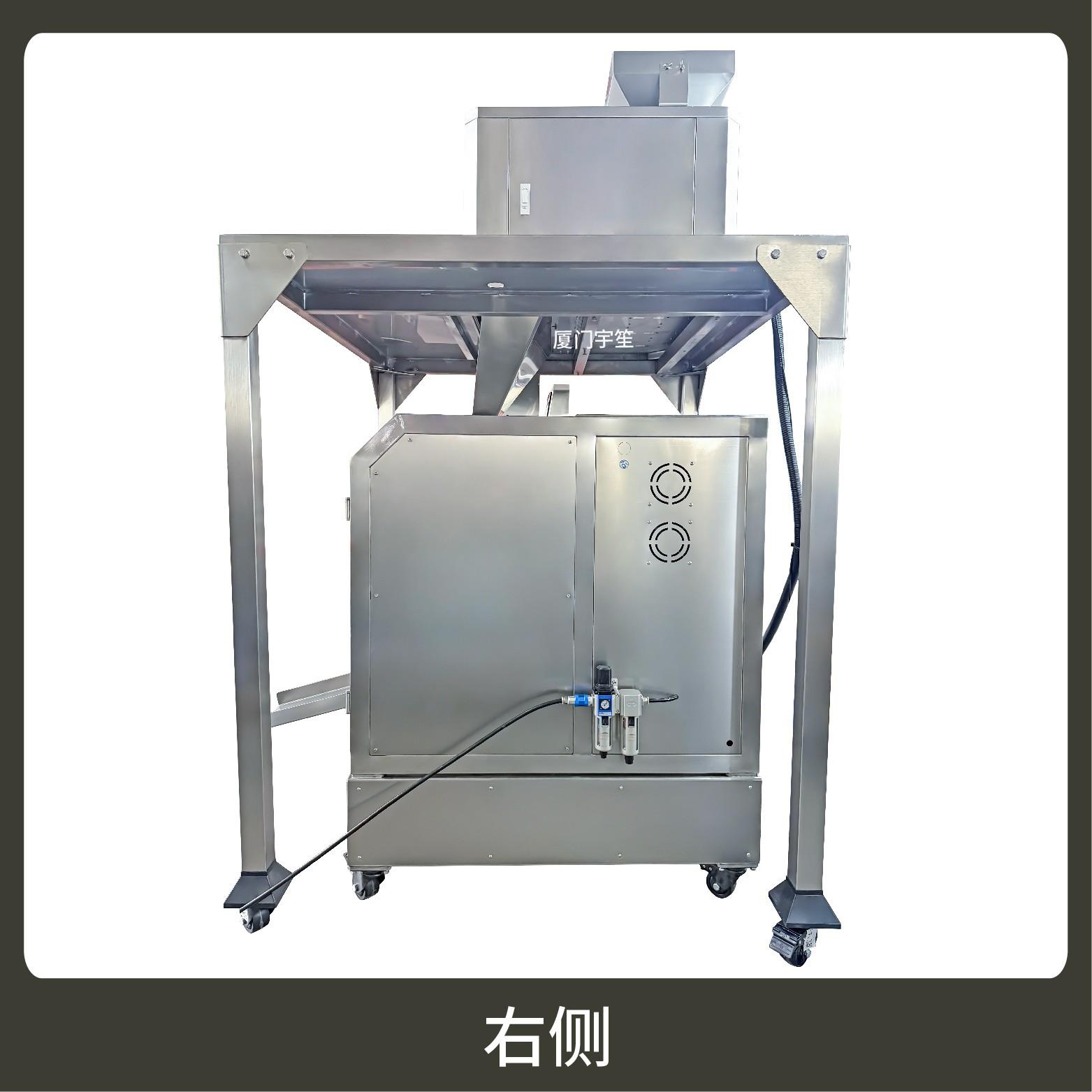

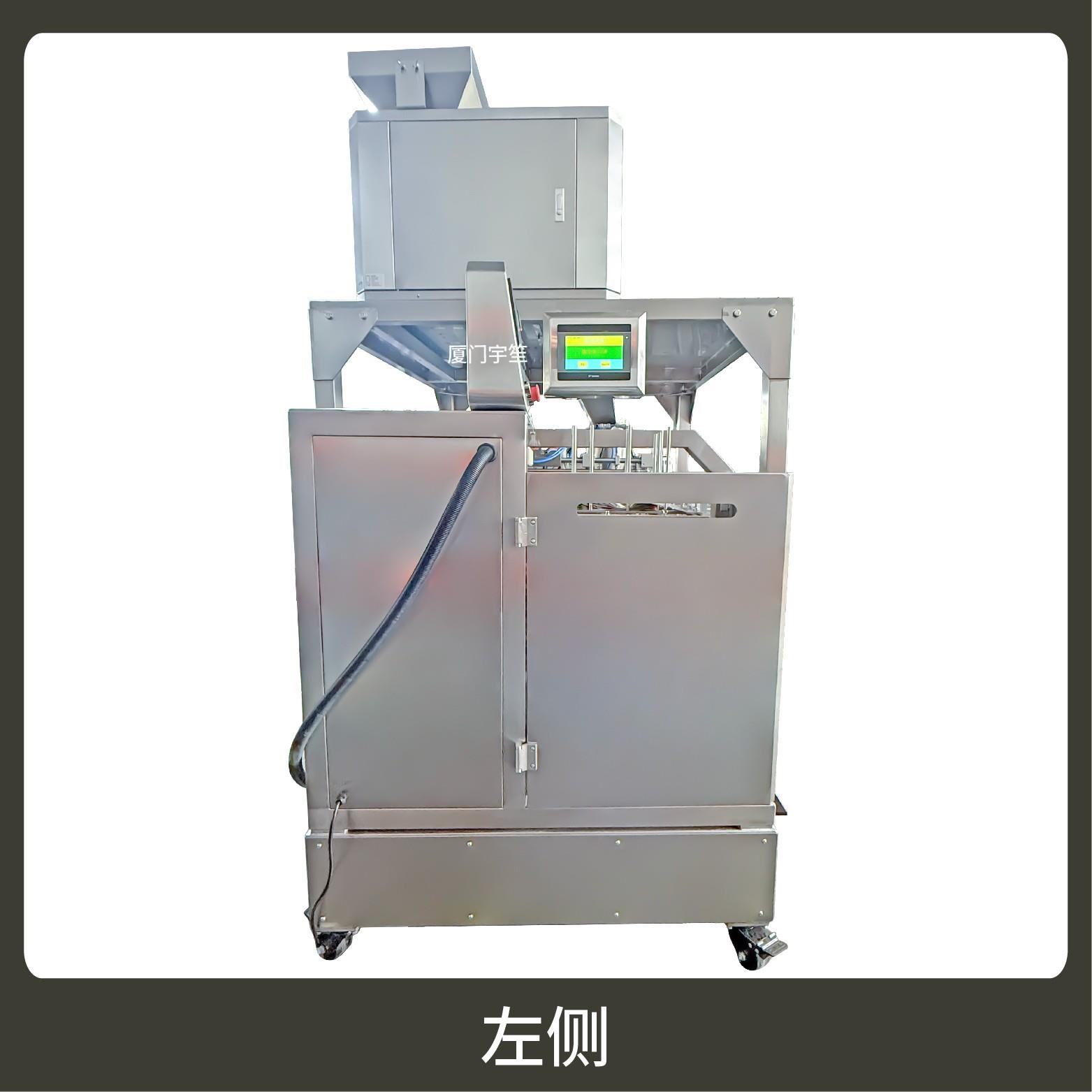

YS-SP180DZC給袋式包裝機（電子秤）
YS-SP180DZC Bag filling and sealing machine(electronic scale )
YS-SP180DZC給袋式包裝機（電子秤）
特點：
1、適用于炒貨（瓜子、核桃等）、休閑零食（凍干果干/蔬菜干、牛肉粒、小餅干等）、干貨（香菇、木耳等）物品的計量包裝。
Suitable for the metering and packaging of roasted snacks (sunflower seeds, walnuts, etc.), leisure snacks (freeze-dried fruits/vegetables, beef cubes, small biscuits, etc.), and dried foods (shiitake mushrooms, fungus, etc.).
2、用于自封袋、站立袋、拉鏈袋，可抽真空、充氮?dú)?/span>。包裝流程全自動，無需人工操作?？筛鶕?jù)充填物料的性質選配不同的下料結構，且可根據客戶要求配置打印批號等功能。
Used for ziplock bags, standing bags, zipper bags. The packaging process is fully automatic without manual operation. Different feeding structures can be selected according to the nature of filling materials, and can be configured to print batch numbers and other functions according to customer requirements.
3、采用觸摸屏操作，PLC控制，封口溫度自動補償，控溫精準，封口美觀大方。（可做M袋、站立袋、自封袋）
It adopts touch screen operation, PLC control, automatic compensation of sealing temperature, precise temperature control, and beautiful sealing.
4、包裝材料：復合膜，如：純鋁，鍍鋁等預制袋。
Packing material: composite film, such as: pure aluminum, aluminum plating and other prefabricated bags.
技術參數：
計量范圍：20-1000g
Measuring Scope
預制袋：長 ( L ) ：100 - 290mm
Prefab bag 寬 ( W ) ：120 - 180mm(帶飛機孔、圓孔)
包裝速度：10 - 25bags / min
Packing Speed
外型尺寸：1877 * 1410 * 2224 mm（規格可定制）
Dimension ( L * W * H )
整機重量：500 kg
Weight
總 功 率：AC220V / 50 - 60Hz / 4.2kw
Total Power
氣 源：≥0.6Mpa
Gas source
